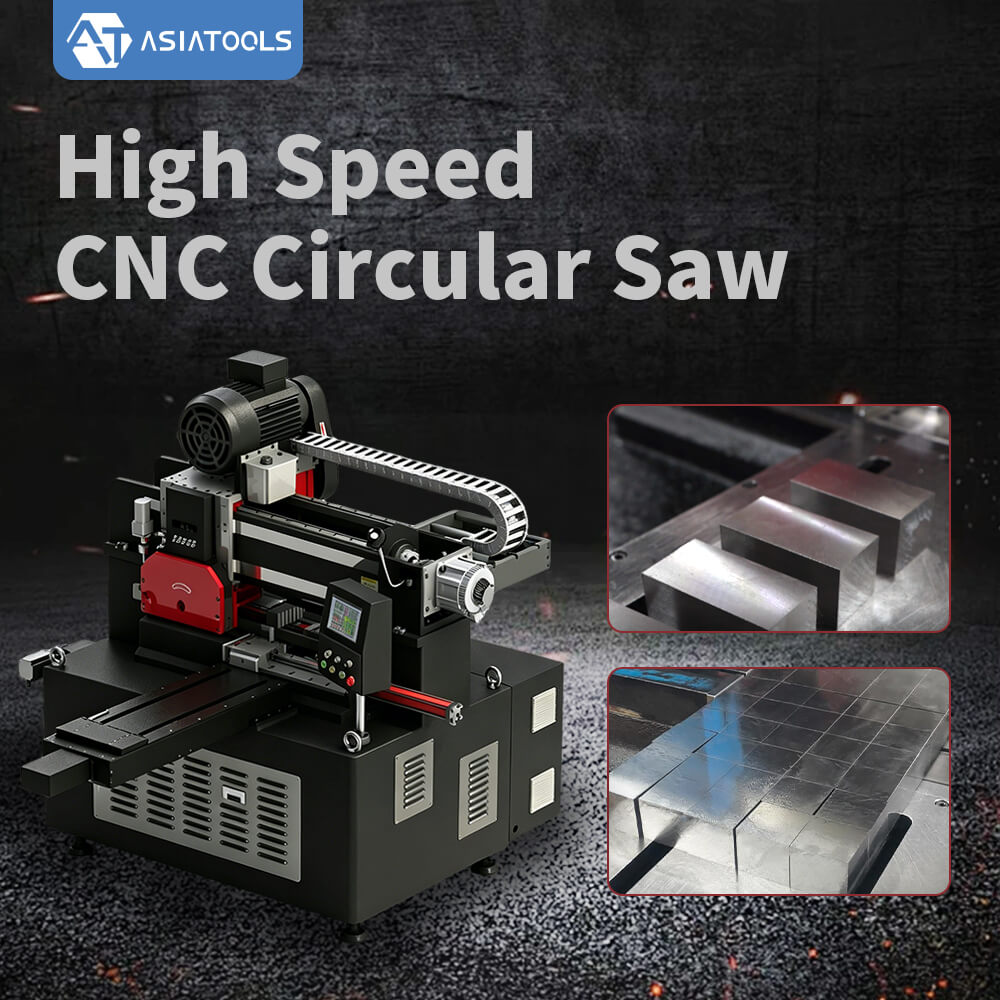

High Speed CNC Circular Saw Metal Cutting Carbide Circular Saw

Product Features

• ±0.05mm accuracy, ready-to-use saw-cut pieces

• Sawing & milling integration

• Structural stability & reliable performance

• Ideal for mold & die, automotive parts, general engineering, metal processing

Product Details

1. Cutting length: ≥6 mm, Cutting width: ≤450 mm, Cutting thickness: 6‑75 mm;

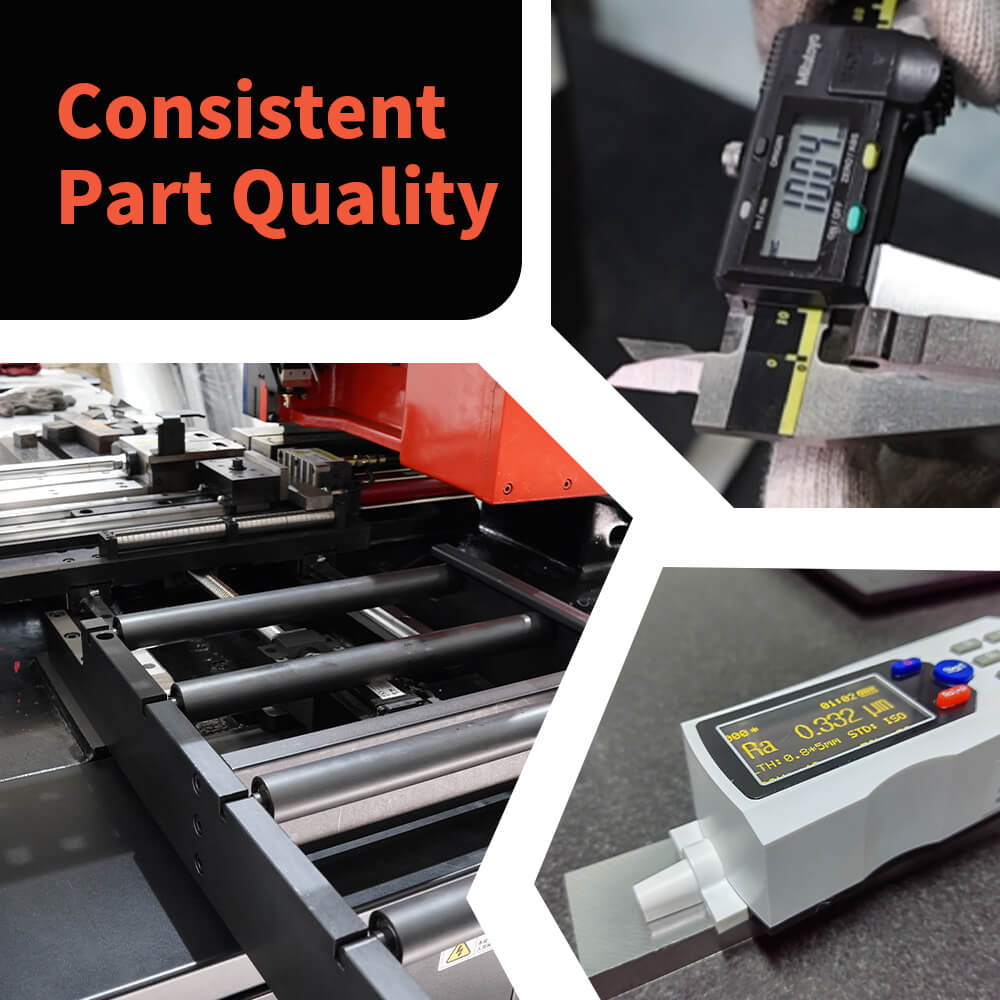

2. Consistent part quality: ±0.05mm cutting accuracy;

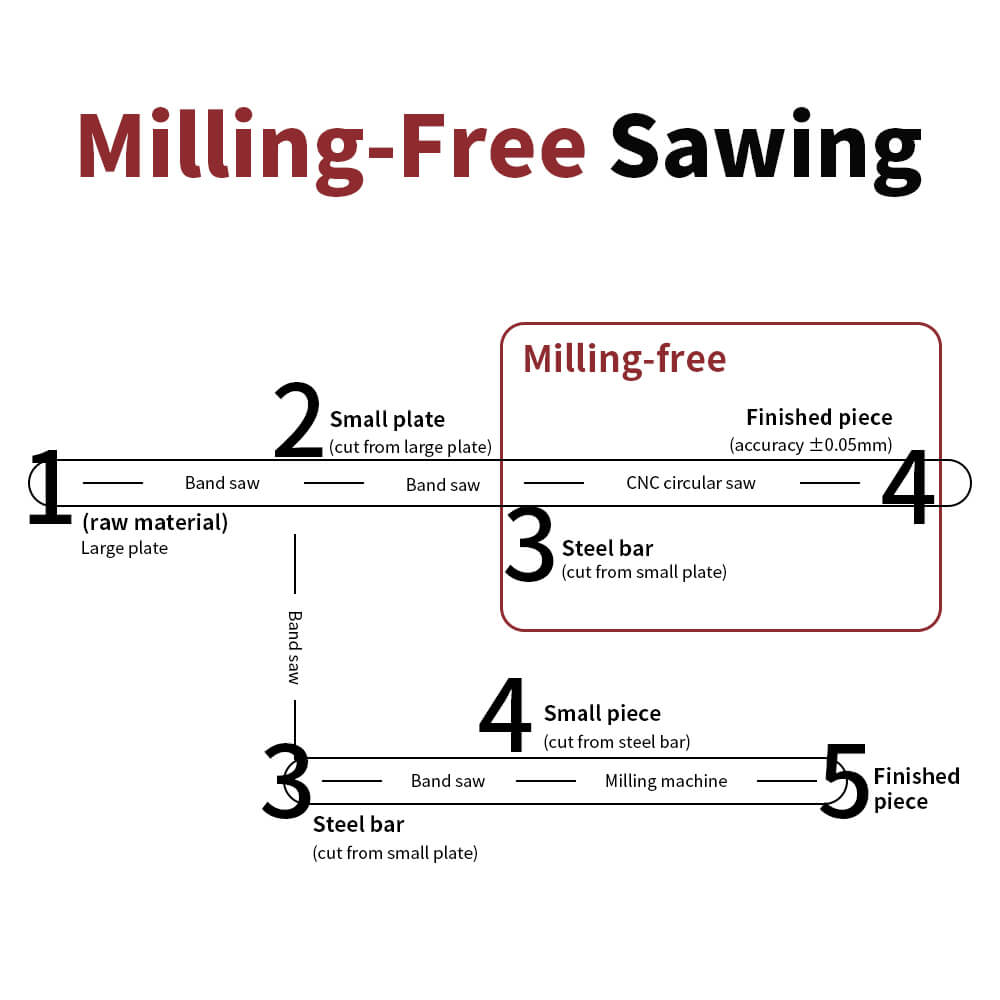

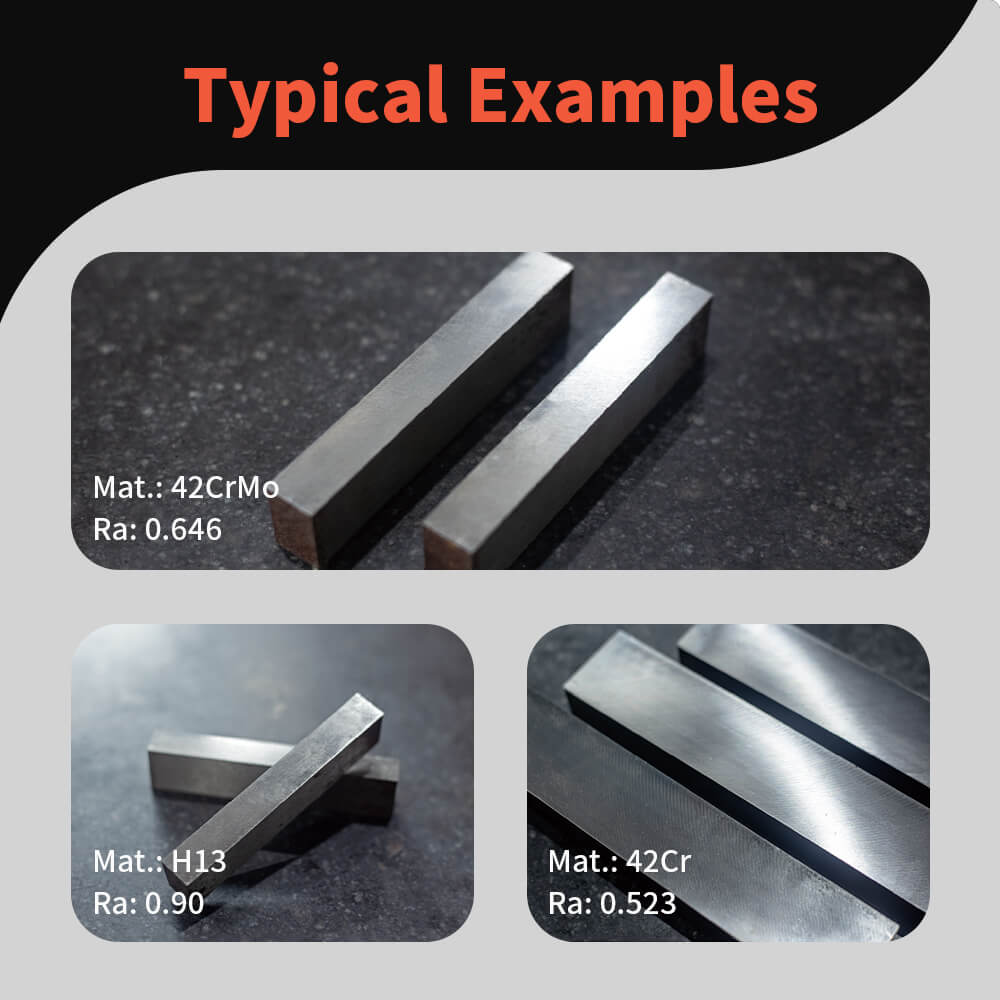

3. Milling‑Free Sawing: Surface roughness ≤ Ra1.6 (typical examples: Ra0.646 on 42CrMo, Ra0.523 on 42Cr, Ra0.90 on H13) – eliminates secondary milling operations;

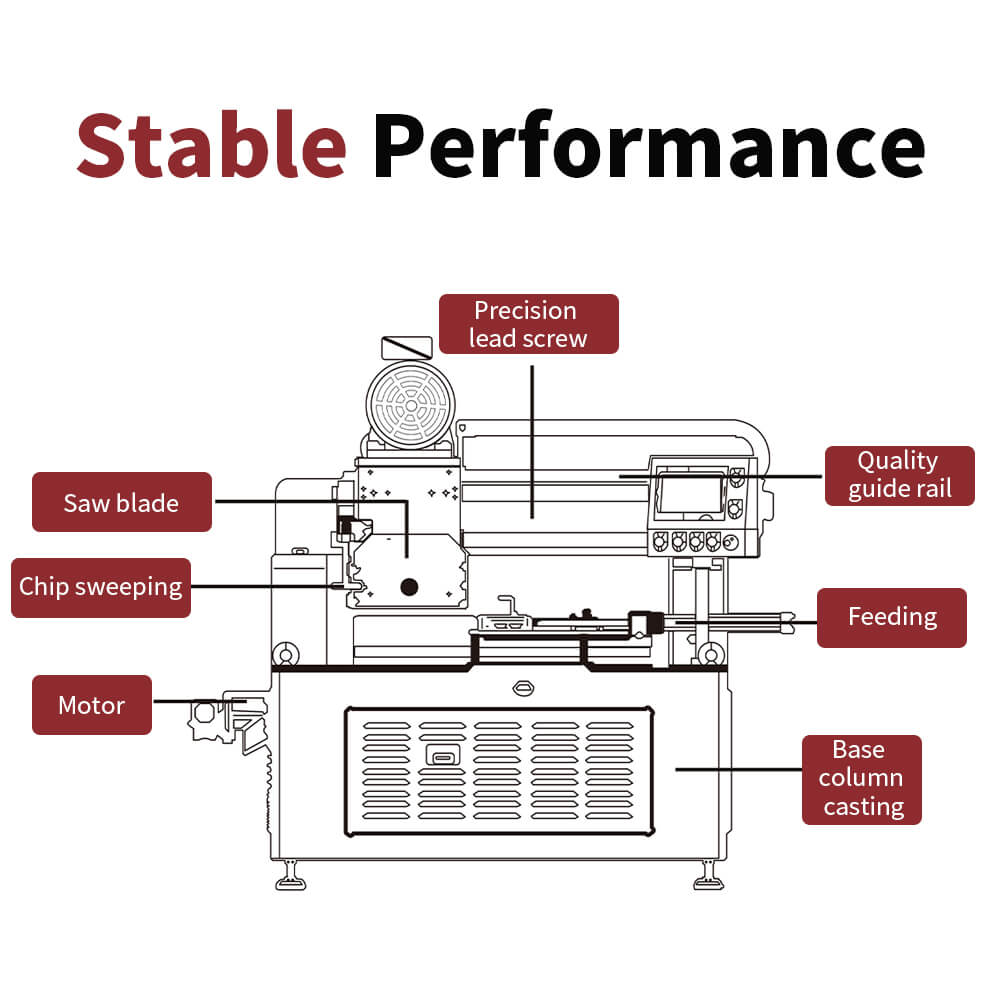

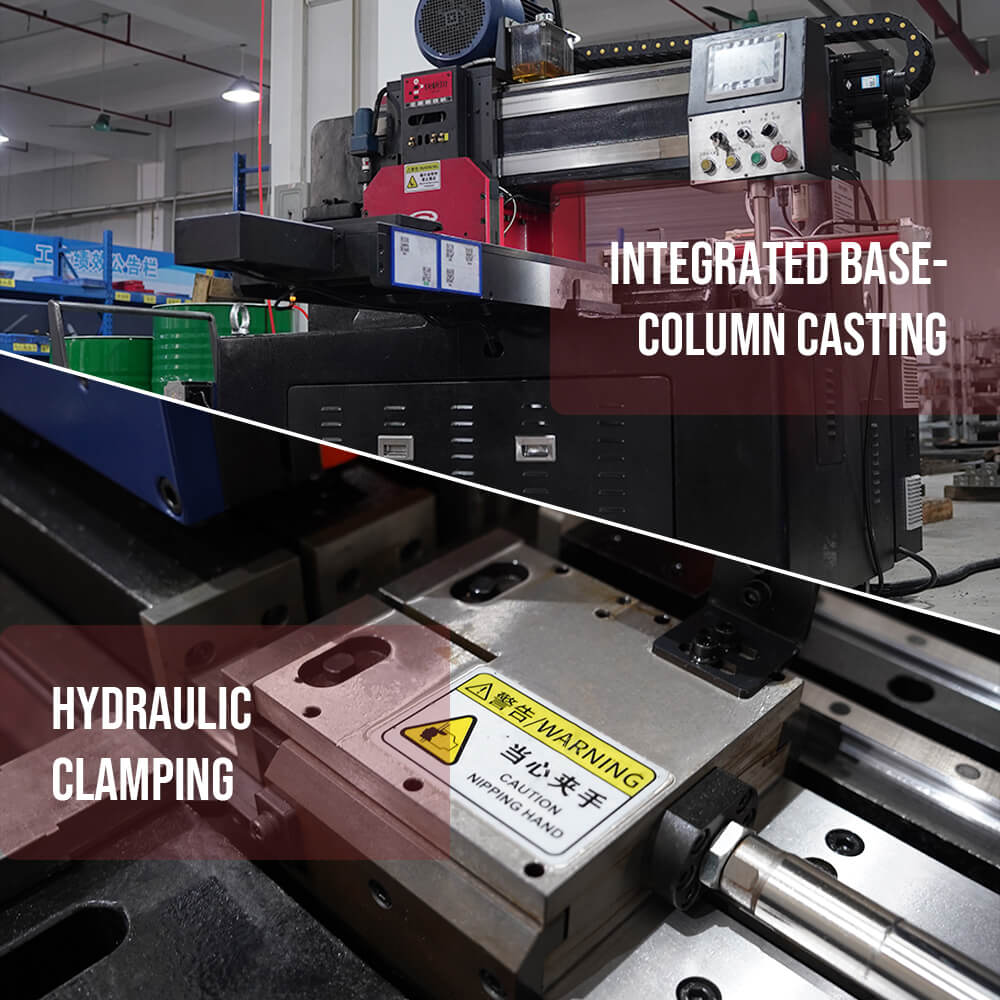

4. Integrated Cast Base & Column: One‑piece casting provides outstanding rigidity and vibration damping;

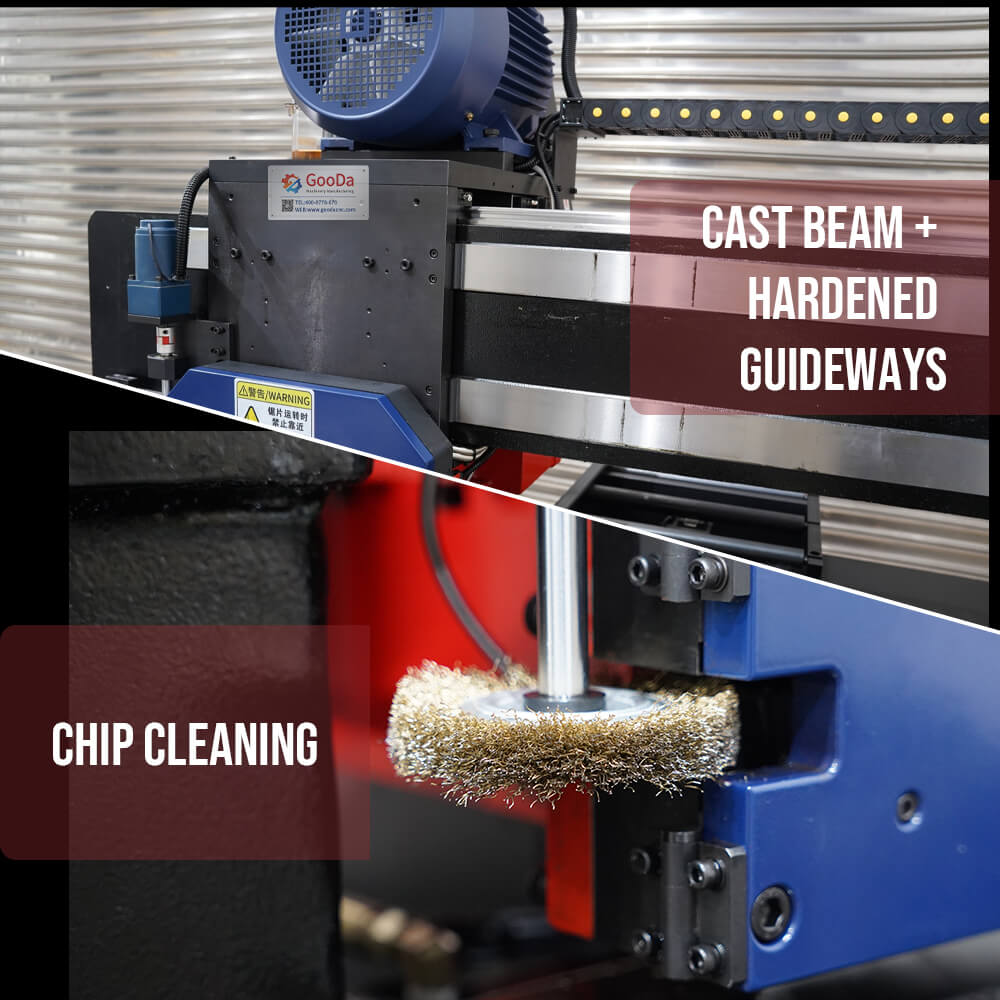

5. Cast Beam with Hardened Rail Guidance: Ensures stable, accurate movement of the sawing head;

6. Hydraulic Worktable Clamping + Side Clamping for Feeding: Secure workpiece holding during cutting; side clamping for both feed and worktable;

7. Automatic Screw Chip Conveyor: Effiective chip removal for continuous operation.

Product Specifications
