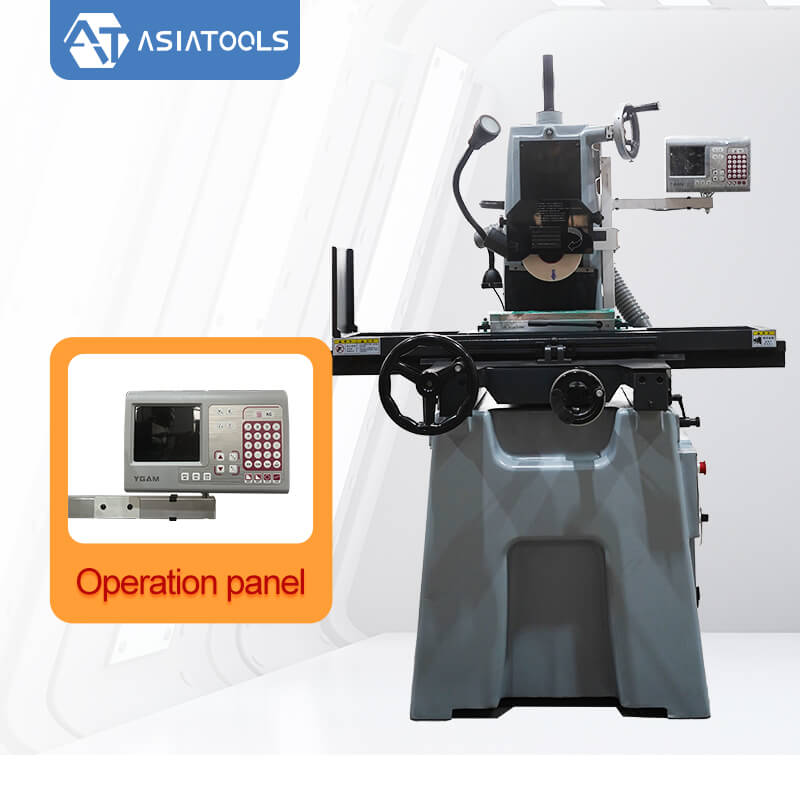

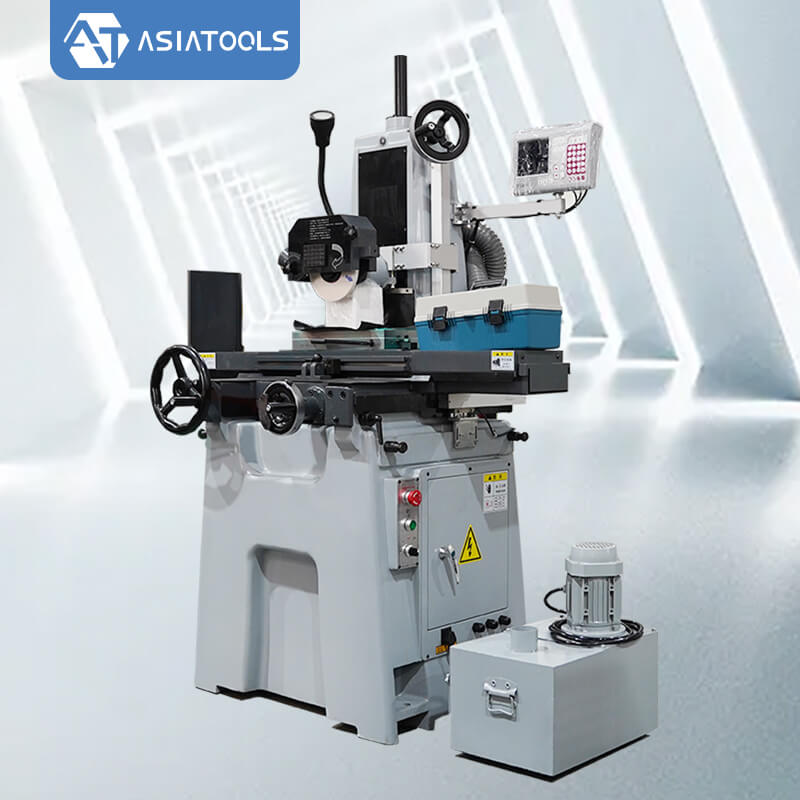

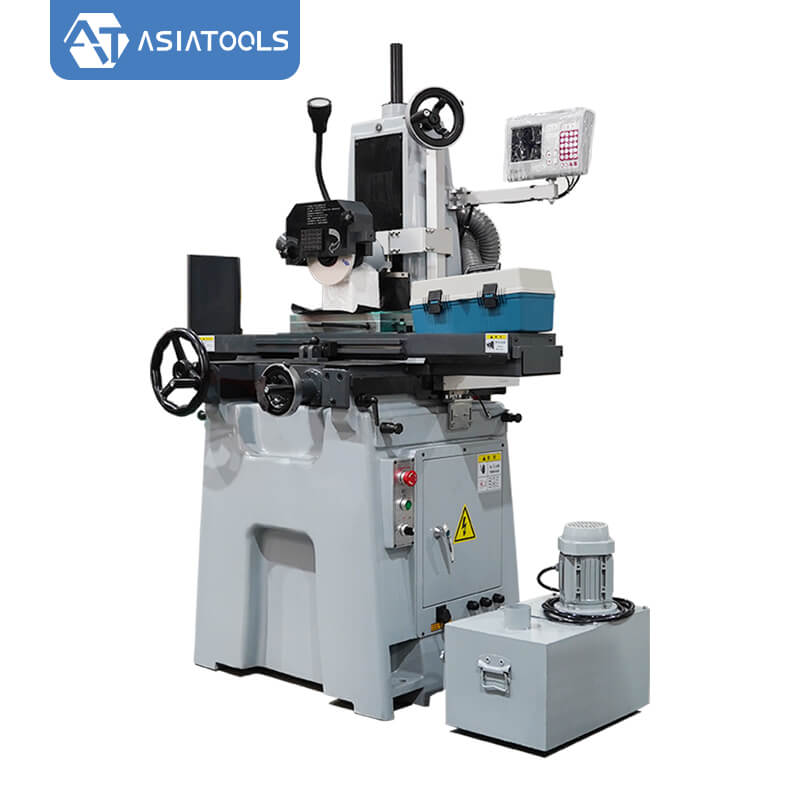

AGM-618S High Precision Manual Surface Grinding Machine Surface Grinder
AGM-618S High Precision Manual Surface Grinding Machine Surface Grinder
Regular price
$9,849.00 USD
Regular price
Sale price
$9,849.00 USD
Unit price
/
per
Product Details
- The table uses hardened steel linear rails with precision ball bearings for smooth, effortless hand-feeding, minimal maintenance, and ease of operation.

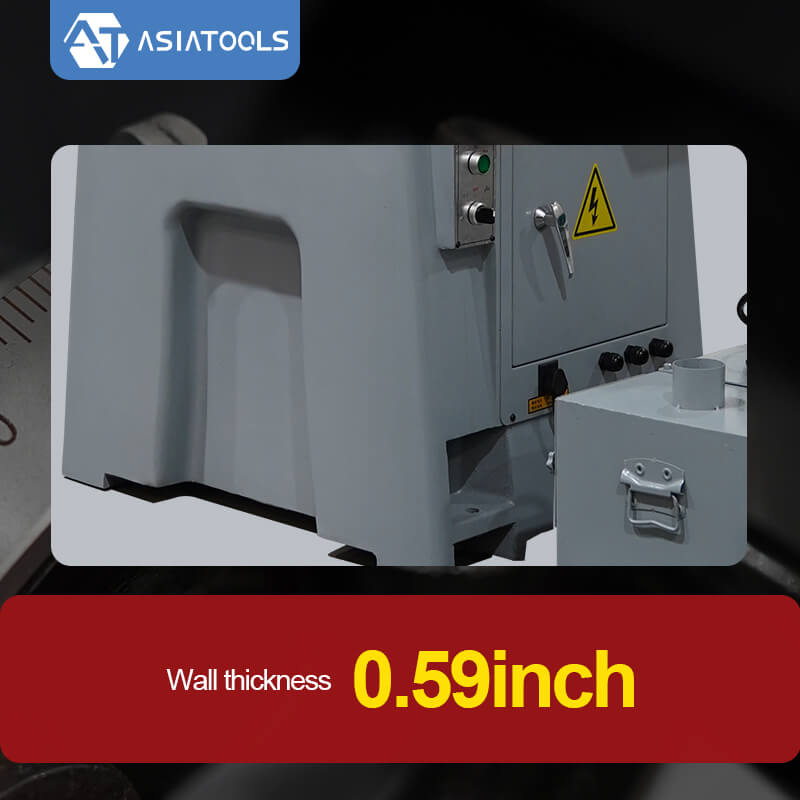

- Cast iron body and the reinforced base with a new box structure for enhanced rigidity, smooth performance, and extended durability.
- Its advanced dust-proof design and oil circulation system prevent dust accumulation.
- Weighing nearly 1 ton, this is the most stable precision grinder available.
- Enlarged machine tool sump with a double filtration system, helps extend the lifespan of both the machine and the pump.
Product Features
Type | Surface Grinding Machine |
Processing Object | Metal, Ceramics, etc. |
Abrasives | Grinding Wheel |
Controlling Mode | Manual |
Automatic Grade | Manual |
Table Speed Setting | Manual |
Cylindrical Grinder Type | Surface Grinding Machine |
Precision Grade | High Precision |
Product Specifications
Model | AGM-618S |
Table Speed | Manual |
Working Surface of Table | 150×457mm-6"×18" |
Grinding Wheel Dimensions | 180×16×32mm-7"×0.6"×1.3" |
Max. Table Travel | 475mm |
Max. Cross Travel | 160mm |
Distance Between Spindle Centre and Table Surface | 400-410mm (Customized up to 450 mm) |
Longitudinal Handwheel Feed | 485mm |
Cross Handwheel Feed | 180mm |
Cross Handwheel Feed per Graduation | 0.02mm |
Cross Handwheel Feed per Revolution | 5mm or 3mm |
Vertical Handwheel Feed per Graduation | 0.005mm |
Vertical Handwheel Feed per Revolution | 1mm |
Spindle Speed @50HZ | 3000rpm |
Spindle Speed @60HZ | 3600rpm |
Spindle Motor | 1.1/1.5 kW |
Packing Dimensions | 1550×1150×1980mm |
Net Weight | 850kg |
Packaging List
Standard Accessories:
|
Optional Extras:
|
Note: For more detail on specification, function, shipping and packaging, please contact us.
