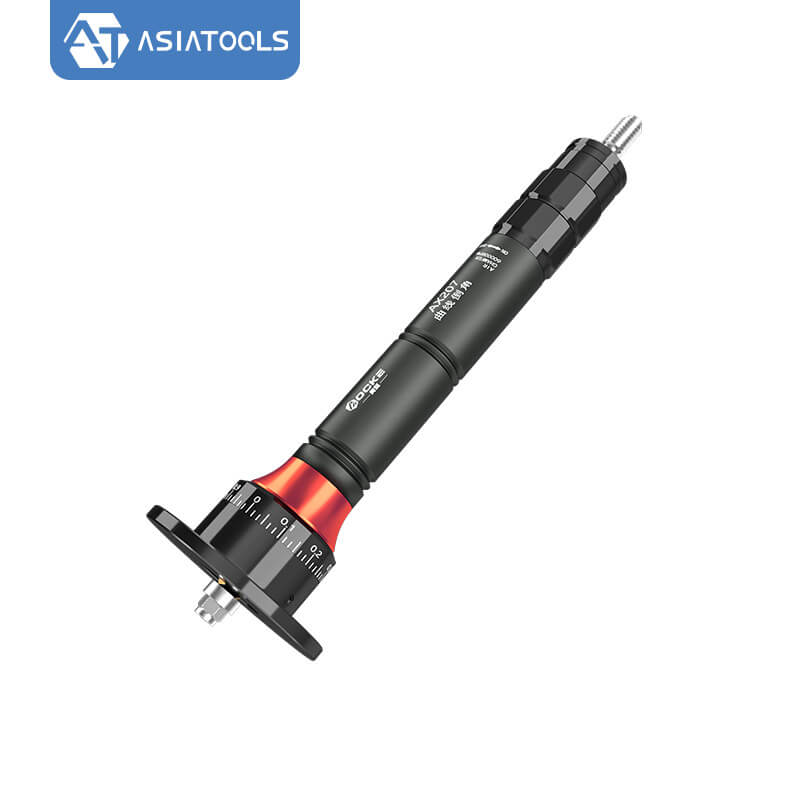

AX207 Mini Pneumatic Chamfering Machine, 45° Metal Deburring Tool for Arc Trimming
AX207 Mini Pneumatic Chamfering Machine, 45° Metal Deburring Tool for Arc Trimming
Product Details
- Easy to Operate: This 45° mini pneumatic chamfering tool features a new lightweight design, making it small, exquisite, and easy to operate with one hand. The blade can be easily replaced using the matching wrench.
- High Cutting Efficiency: The upgraded version of the pneumatic chamfer tool comes with a new chrome-plated all-aluminum shell and high-quality bearings. It is equipped with high-precision, heat-treated blades for improved performance, smoother deburring and chamfering.

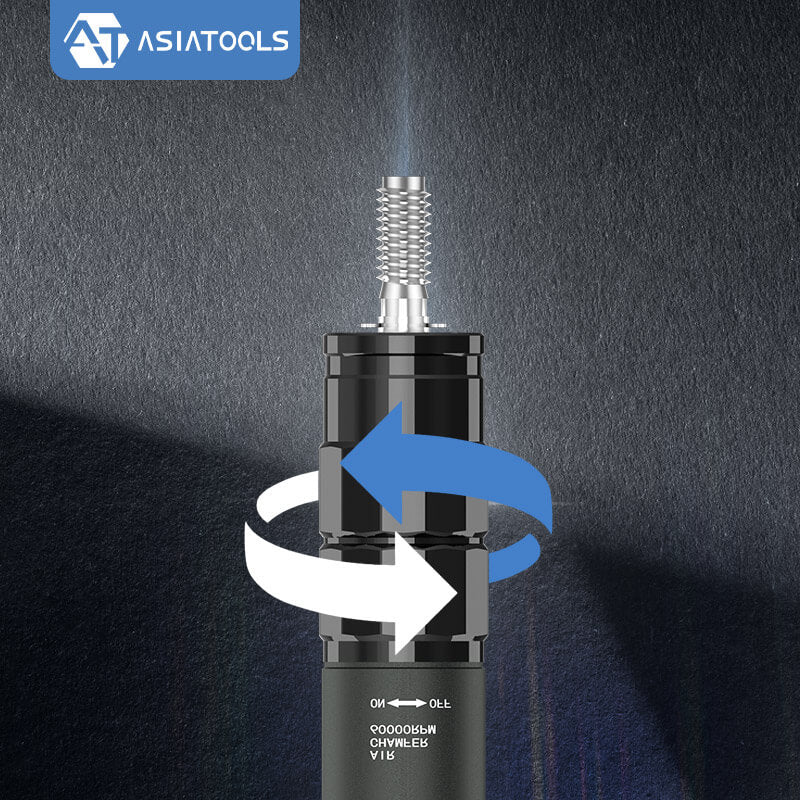

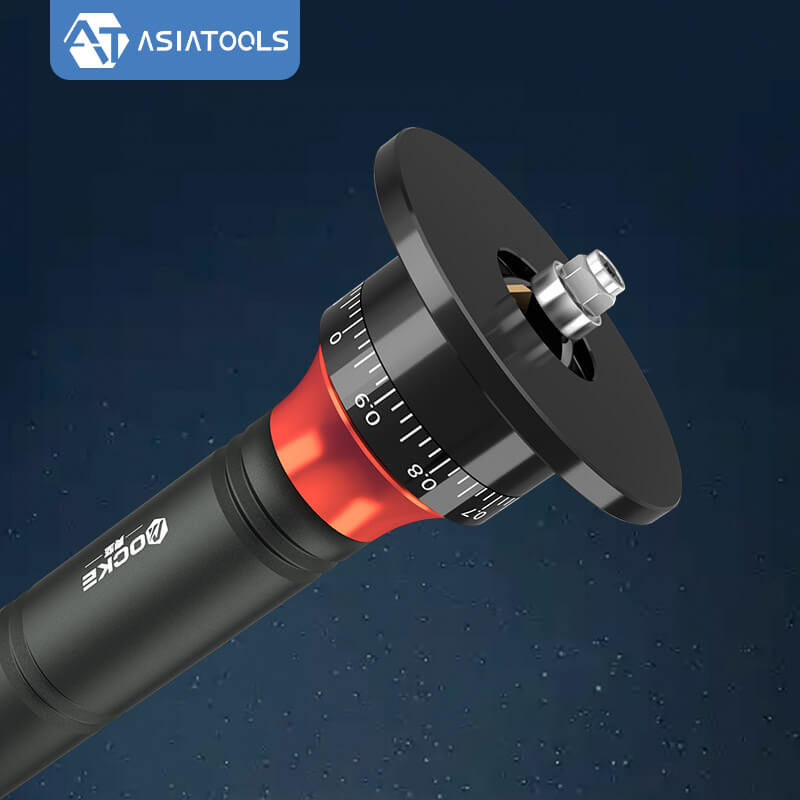

- Smooth chamfering: The speed can reach up to 60,000 rpm, with chamfering capacity of C0.1~1.0, depth range of 0.1-0.9mm. The rear of the tool has a stepless speed control gate, allowing for the free adjustment of intake speed: accelerate in forward rotation, decelerate in reverse rotation.
- Stable Speed: The pneumatic metal beveling tool can bear high impact and high speed with minimal vibration, low resistance, and reduced wear. The increased speed results in smoother chamfering, making the beveling machine more durable.
Product Functions
AX207:

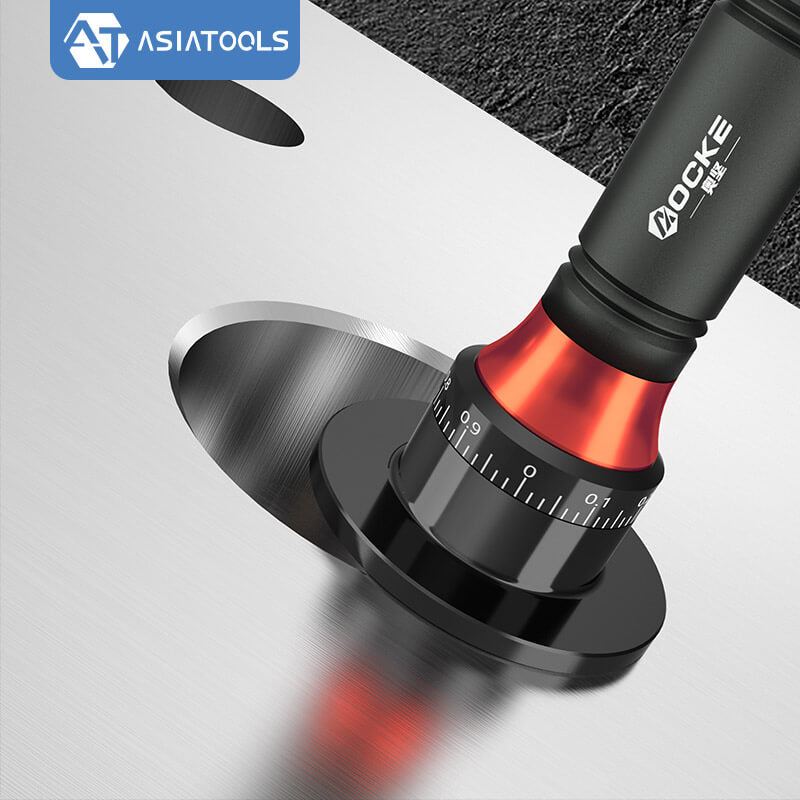

Curved edges and round holes chamfering(*Chamfering straight edges will wear out the guide wheel)
AX210:

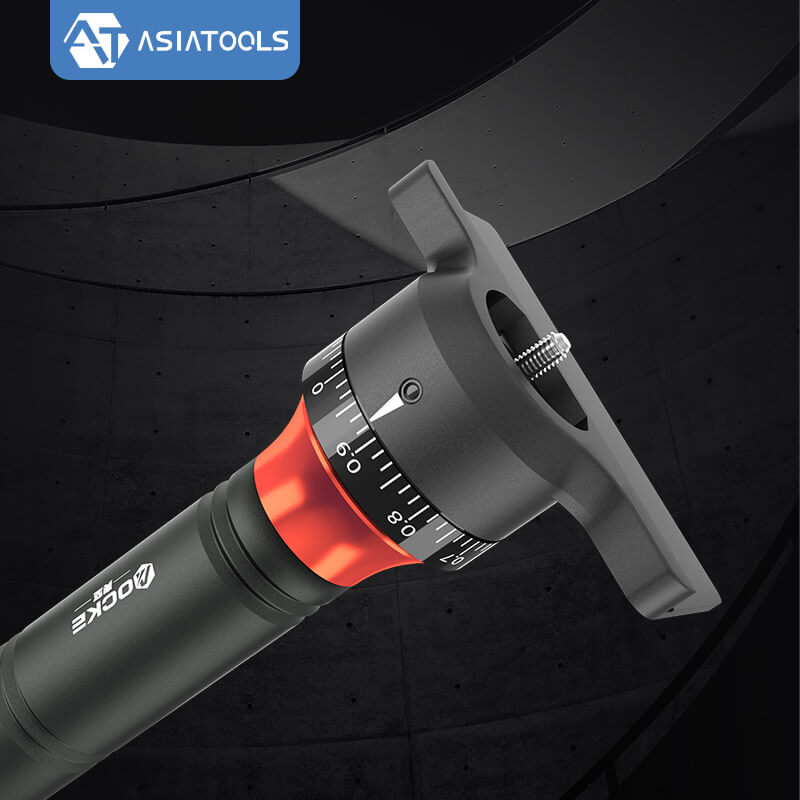

Straight edge chamfering without guide wheel wear
AX207S:
Multi-functional use on straight and curved lines: Curved edges, round holes, and straight edges chamfering
Applications
The portable air chamfering tool, with its thinnest nut lock bearing, can chamfer in the narrowest and shallowest spaces.
It's suitable for deburring various angles, including straight edge, inner and outer round hole, and irregular angle, such as keyway and polygonal chamfering.
It also serves as a deburring tool for metal trimming and round R side chamfering.
Note: This machine is specialized for deburring, with a maximum chamfer angle of less than 1mm. For larger cutting requirements, please contact us now.
Product Specifications
Model | AX207 | AX210 | AX207S |
Power source type | Air Powered | Air Powered | Air Powered |
Using pressure | 0.6-0.8Mpa | 0.6~0.8Mpa | 0.6-0.8Mpa |
Min. chamfering hole diameter | 7mm | - | 7mm |
Idle speed | 60000rpm | 60000rpm | 60000rpm |
Min. plate thickness | 2mm | 2mm | 2mm |
Chamfering capacity | C0.1~1.0 | C0.1~1.0 | C0.1~1.0 |
Adjustable depth | 0.1~0.9mm | 0.1~0.9mm | 0.1~0.9mm |
Min. depth of hole | 5mm | - | 5mm |
Weight | about 0.1KG | about 0.1KG | about 0.1KG |
Blade model | AGF-390A | AGF-390A | AGF-390A |

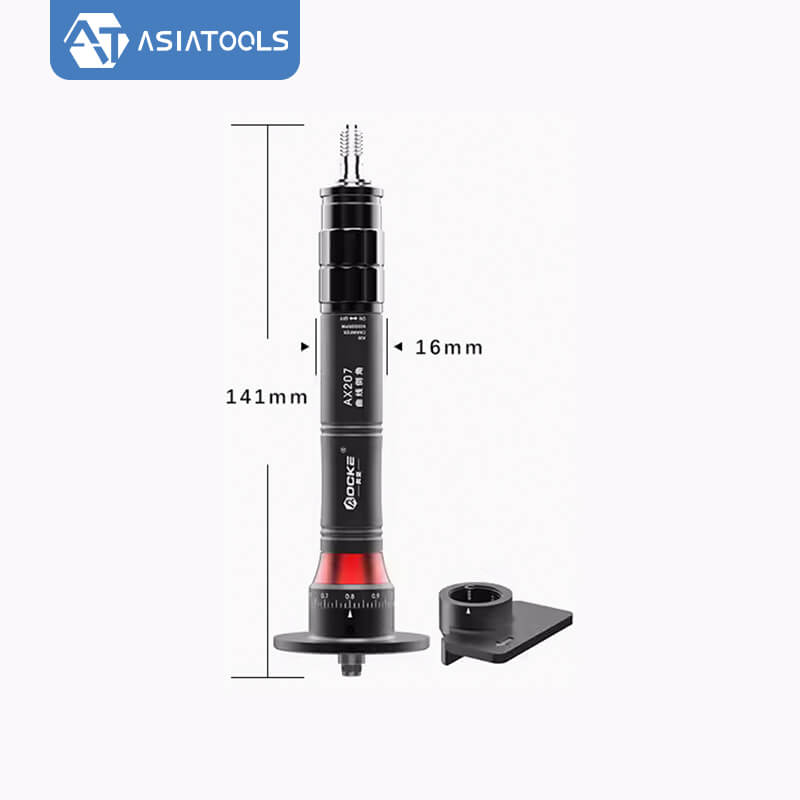

Dimension |
Dia.: 16mm Length: 141mm |
Dia.: 16mm Length: 141mm |
Dia.: 16mm Length: 141mm |
Standard Accessories
- Air connector
- Air hose
- Wrench *2
- Original blade *2
- Right-angle guide plate
- Flag type wrench
- Hex wrench
- Lubricating oil
Note: For more detail on specification, function, shipping and packaging, please contact us.
