AX210 Mini Pneumatic Chamfering Machine, 45° Metal Deburring Tool for Linear Trimming
AX210 Mini Pneumatic Chamfering Machine, 45° Metal Deburring Tool for Linear Trimming
Product Details
- Precise Chamfering: Achieve clean, accurate chamfering and deburring on metal with adjustable cutting depth and a adjustable angle ranging from 0 to 45 degrees.
- Adjustable Arc and Linear Trimming: The AX207S model offers full control over arc and linear motion, making it easy to handle complex shapes and angles with precision.
- Efficient and Time-Saving: Powered by a high-speed motor, this machine speeds up the chamfering process, allowing you to work efficiently and save both time and effort.
- Versatile Material Compatibility: Ideal for use on materials like aluminum, copper, iron, and plastic, the machine is designed to deburr, chamfer, and trim a wide range of surfaces effortlessly.
- Compact Design for Comfort: Its lightweight and ergonomic design ensures a comfortable grip for long-time use, minimizing hand fatigue during intricate tasks.
- Durable and Reliable: Built with premium materials for durability and heavy-duty performance, ensuring long-term reliability.
Product Functions
AX207:
Curved edges and round holes chamfering(*Chamfering straight edges will wear out the guide wheel)
AX210:

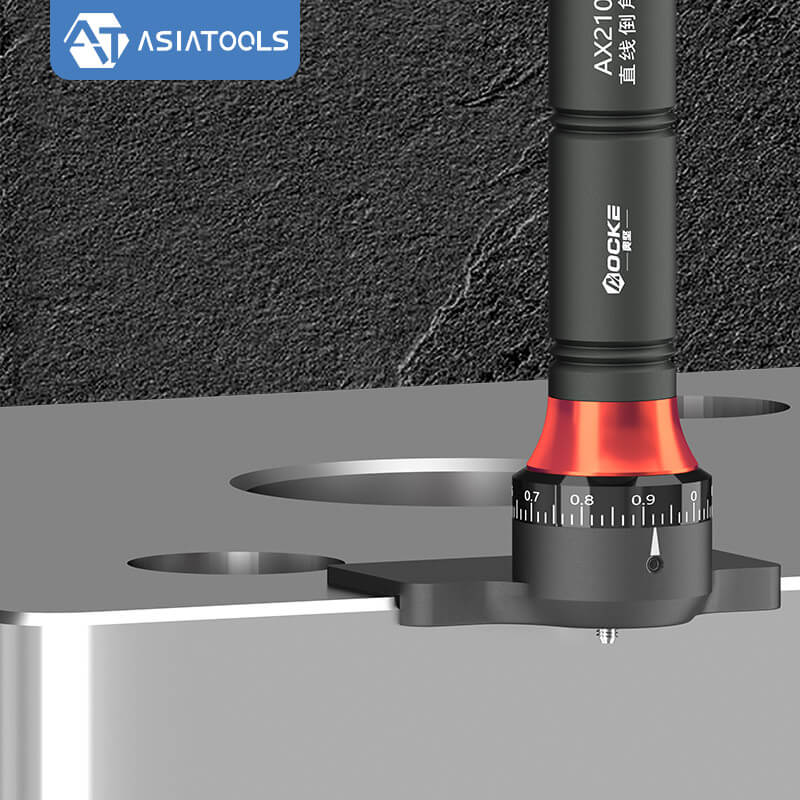

Straight edge chamfering without guide wheel wear
AX207S:
Multi-functional use on straight and curved lines: Curved edges, round holes, and straight edges chamfering
Applications
The portable air chamfering tool, with its thinnest nut lock bearing, can chamfer in the narrowest and shallowest spaces.
It's suitable for deburring various angles, including straight edge, inner and outer round hole, and irregular angle, such as keyway and polygonal chamfering.
It also serves as a deburring tool for metal trimming and round R side chamfering.
Note: This machine is specialized for deburring, with a maximum chamfer angle of less than 1mm. For larger cutting requirements, please contact us now.
Product Specifications
Model | AX207 | AX210 | AX207S |
Power source type | Air Powered | Air Powered | Air Powered |
Using pressure | 0.6-0.8Mpa | 0.6~0.8Mpa | 0.6-0.8Mpa |
Min. chamfering hole diameter | 7mm | - | 7mm |
Idle speed | 60000rpm | 60000rpm | 60000rpm |
Min. plate thickness | 2mm | 2mm | 2mm |
Chamfering capacity | C0.1~1.0 | C0.1~1.0 | C0.1~1.0 |

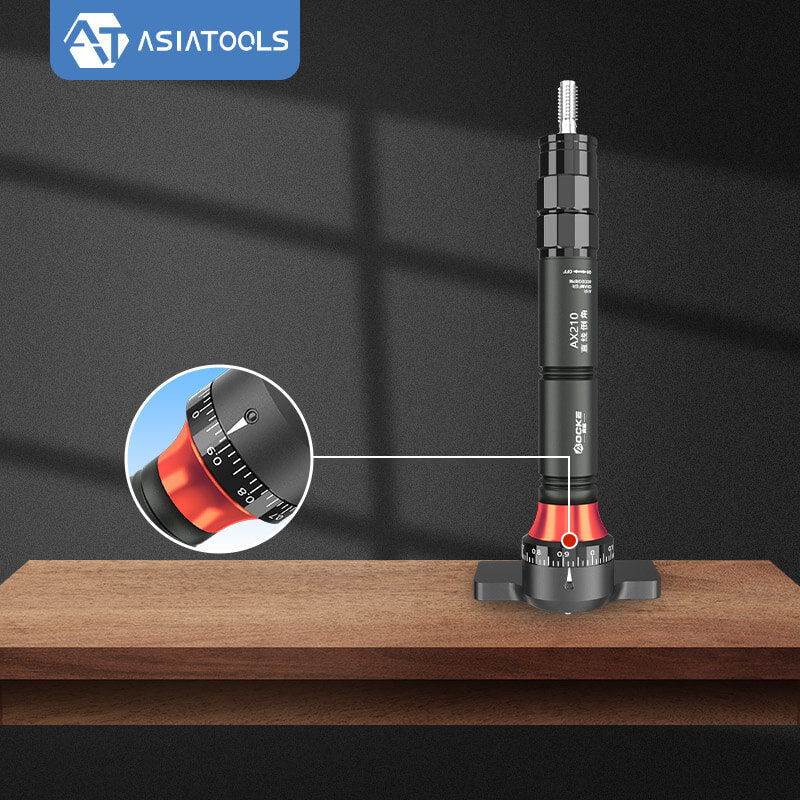

Adjustable depth | 0.1~0.9mm | 0.1~0.9mm | 0.1~0.9mm |
Min. depth of hole | 5mm | - | 5mm |
Weight | about 0.1KG | about 0.1KG | about 0.1KG |
Blade model | AGF-390A | AGF-390A | AGF-390A |
Dimension |
Dia.: 16mm Length: 141mm |
Dia.: 16mm Length: 141mm |
Dia.: 16mm Length: 141mm |
Standard Accessories
- Air connector
- Air hose
- Wrench *2
- Original blade *2

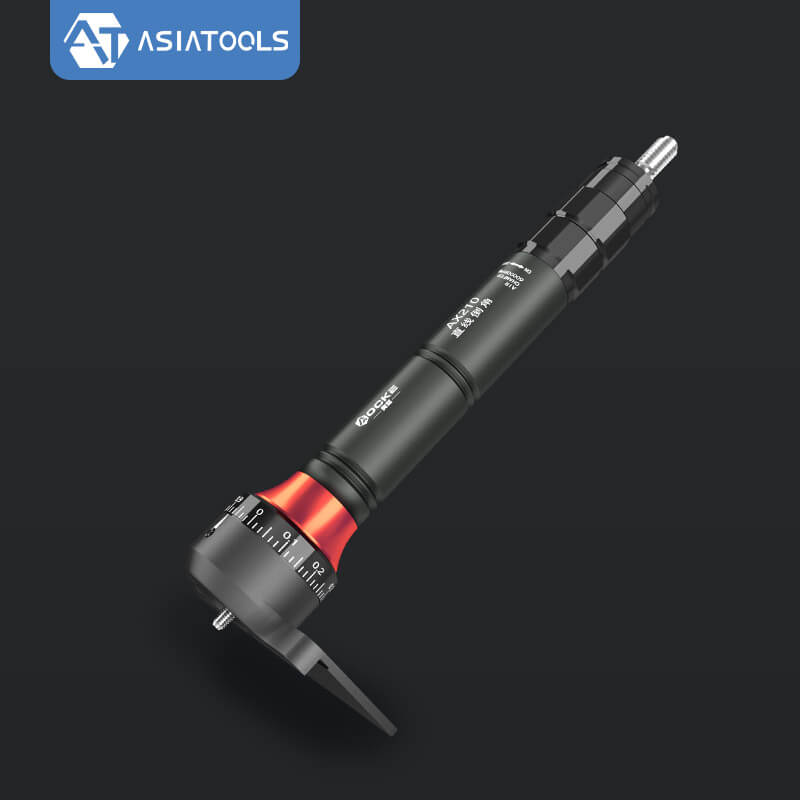

- Right-angle guide plate
- Flag type wrench
- Hex wrench
- Lubricating oil
Note: For more detail on specification, function, shipping and packaging, please contact us.
