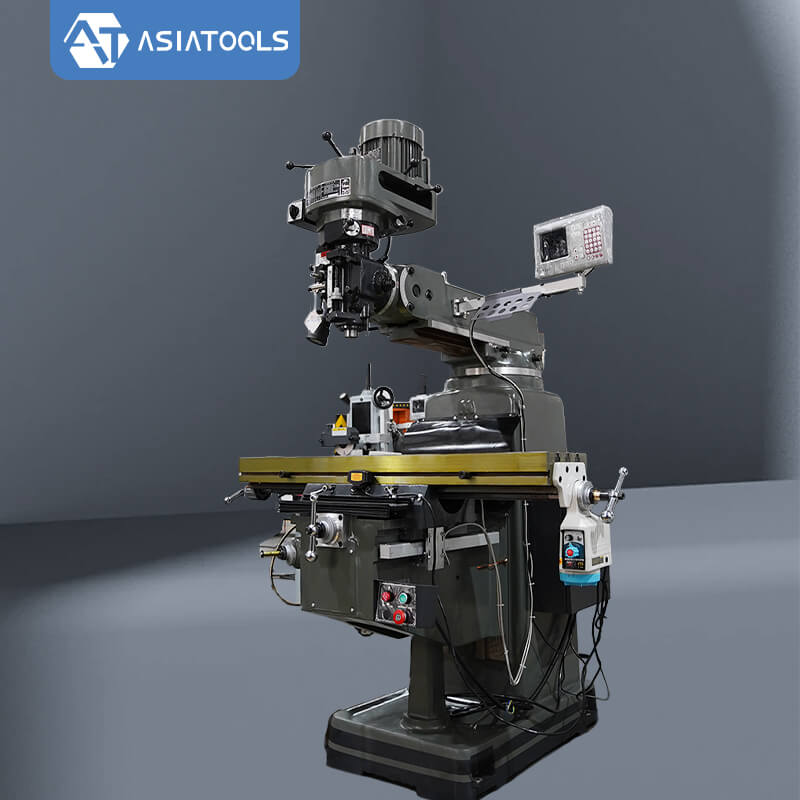

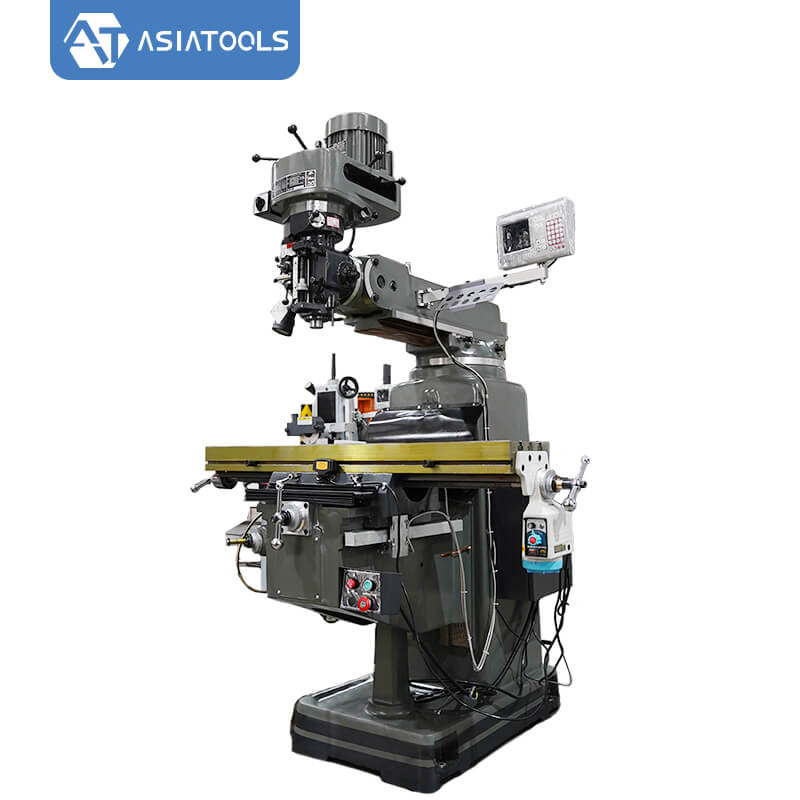

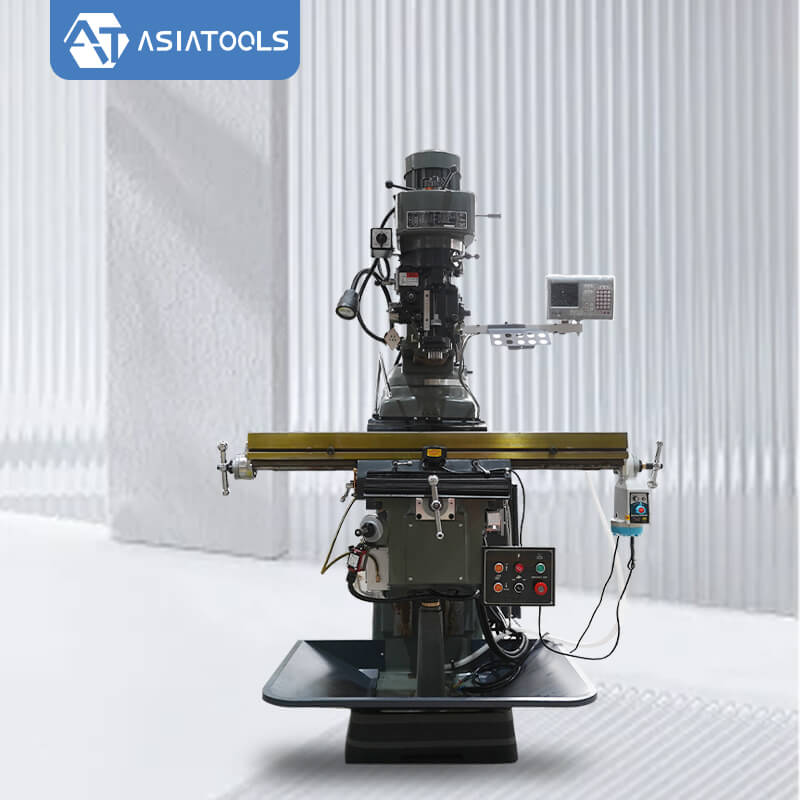

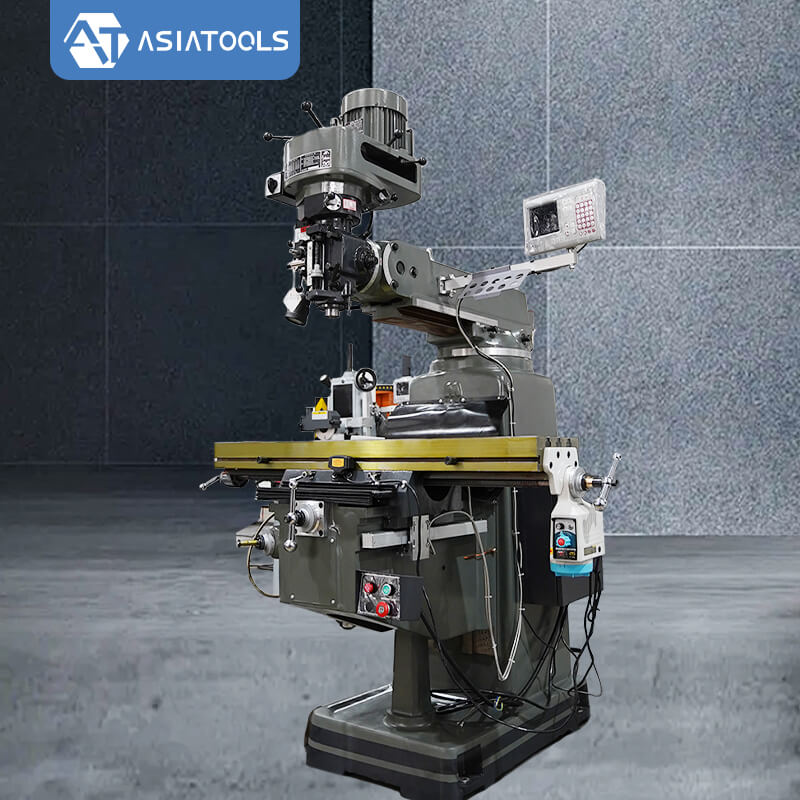

ASIATOOLS F4 Vertical Turret Milling Machine is a versatile and compact tool, perfect for precision milling. Its universally tilting head can tilt from 90° to the left and right, and 45° forward and backward, providing flexible positioning.
The table can extend and retract horizontally and also rotate 360° within the horizontal plane.
Known for its high precision, reliability, and flexibility, F4 turret milling machine excels in a variety of milling applications and maintains exceptional performance as a standard feature.
The machine comes with essential accessories, and additional tools are available for further customization.
Product Details
Hardened Guideways
The guideways are precision ground, combined with manual grinding, to enhance the accuracy and service life of the machine.
Taiwan Brand Spindle
The spindle is made of Manganese Alloy Steel, subjected to heat treatment and precision grinding, offering high rigidity.
Automatic Power Feed
The X/Y/Z axes feature automatic power feeds with long travel distances, ensuring high stability.
Digital Readout
The machine's digital readout system is ergonomically suspended on the side of the machine for easy and convenient operation.
Standard Accessories
- Worktable
- Servo-type power feeds in X-axis
- R8 collet
- 58 pcs clamping kit
- Electrical control box
- 2 Axis digital readout
- Toolbox and manual
- 200 mm bench vise
Optional Extras
- Water pump
- Automatic lubricator
- Grating scale for Z-Axis
- NT30 OZ collet assembly
- Stand on coolant tray
- 200 mm hydraulic vise
- Servo-type power feeds in Y-axis
- Quick pneumatic tool change system
- NT30 ASC collet assembly
Product Specifications
Brand | ASIATOOLS |
Product name | Turret Milling Machine |
Model | F4 |
Function | Milling grooves, drilling, reaming, and boring holes |
Table size(L*W) | 1270*254mm |
Table load | 300kg |
X-axis travel | 760mm |
Y-axis travel | 350mm |
Z-axis travel | 350mm |
Distance between spindle nose to table | 75-480mm |
Arm stroke | 430mm |
Quill travel | 127mm |
Quill feed | 0.04/0.08/0.15mm/rev |
Speed step number | 16 steps |
Spindle speed | 80-5440 RPM |
Spindle taper | R8(NT30) |
Motor | 3HP |
Headstock tilt | 45º Forward & back, left & right |
Guide Way X, Y, Z | ▲▄▲ |
Dimensions (L*W*H) | 1750*1700*2100mm |
Net weight | 1050kg |
Note: For more detail on specification, function, shipping and packaging, please contact us.
